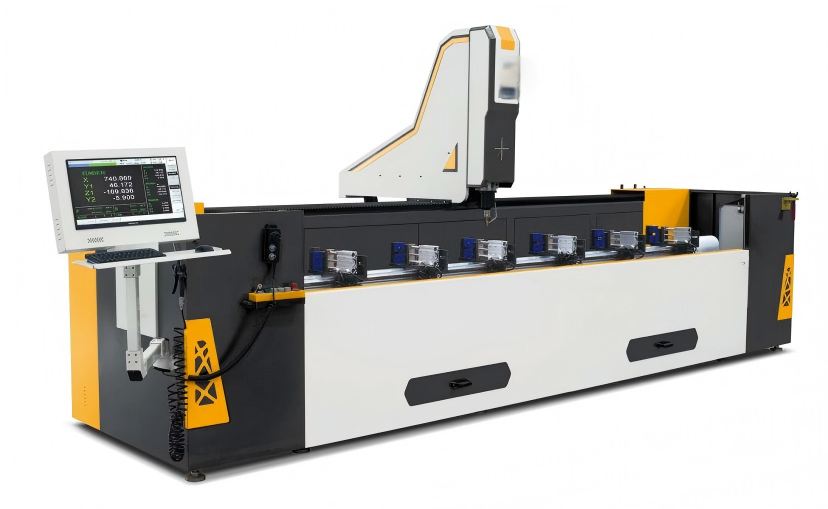

4-axis CNC Drilling and Milling Processing Center
DSK4-CNC-3500
Length can be customized
X-axis stroke: 3500 mm
Y-axis stroke: 420 mm
Z-axis stroke: 400 mm
X-axis running speed: 0-60 m/min
Y-axis running speed: 0-45 m/min
Z-axis running speed: 0-30 m/min
Spindle speed: 18000 rpm
Spindle power: 9.0 kW
Total power: 13 kW
Fixture station: 6 stations
Working pressure: 0.6-0.8 MPa
Gas consumption: 8 L/min
Power supply: 380V/50Hz
Overall dimensions: 5300 × 2200 × 2500 mm
Weight: Approx. 1500 kg
The design goal of the whole machine is high-speed and high-precision
machining. The structural design and power ratio of the whole machine
have been strengthened, so that the equipment has high-strength bed
and moving parts, and the use eciency has been greatly improved.

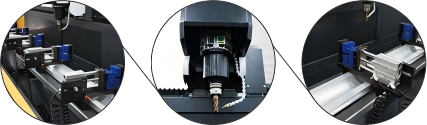

High-speed and high-precision motorized spindle, X-axis with highprecision grinding helical gear, helical rack, three high-precision square
guide rails as auxiliary, Y-axis and Z-axis with high-precision grinding ball
screw drive and four high-precision square guide rails as auxiliary.
Four groups of jigs automatically walk to avoid the processing area
(optional).
It is safer, faster and more reliable to use servo motor to control the
three-sided turning of the workbench.
Product Details
Related Cases
Related Post
This machine is a multi-machine intelligent connection model, which supports the docking of ERP/MES management software, realizes the integration of production and marketing management and control, and improves production effciency.
■ Scanning and sawing the two -dimensional code, the system automatically generates the processes of machining the round hole, slot hole, lock hole, special-shaped hole, milling, chamfering, etc., without manual participation, reducing the labor intensity and improving the qualiied rate ofinished products.
