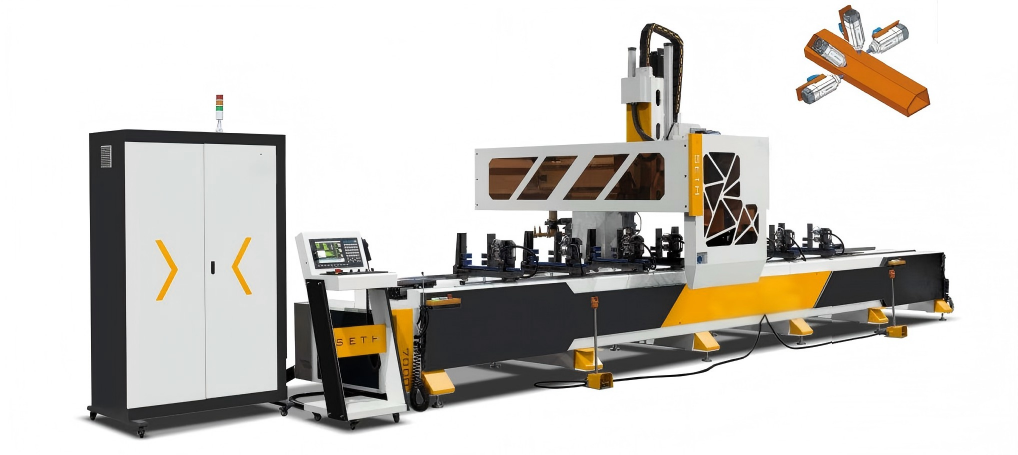

4-Axis CNC Gantry Machining Center
LGS-CNC-7000
Length can be customized
X-axis stroke: 7000~9000 mm
Y-axis stroke: 1300 mm
Z-axis stroke: 550 mm
X-axis running speed: 0~80 m/min
Y-axis running speed: 0~30 m/min
Z-axis running speed: 0~20 m/min
Spindle speed: 0~24000 rpm
Spindle power: 12 kW
Spindle rotation range: -90° to 0° to +90°
Tool magazine: 12 tools
Max. installation length of cutter: 165 mm
Total power: 23 kW
Fixture station: 8 stations
Gas consumption: 15 L/min
Machining size range (Top): 650 × 250 × 7000 mm
Machining size range (Side): 435 × 250 × 7000 mm
Overall dimensions: 11300 × 2350 × 2550 mm
Weight: Approx. 5000 kg
It is suitable for milling, cutting, rigid tapping and carving of various
holes and grooves of aluminum curtain walls and industrial aluminum
proles, and cooperates with three-dimensional programming software
to perfectly realize drilling, cutting and milling.
Adopt imported control system and servo motor, with RTCP tool tip
following function, and can process multiple faces at one time.
Product Details
Related Cases
Related Post
High-quality grinding ball screw, linear guide grinding rack and high
speed bearing and other mechanisms to ensure that the equipment
has high machining accuracy.
The position of the xture can be automatically positioned to avoid the
machining area. (optional)
Two tables can be used to process two or two proles at the same time,
with interactive feeding and non-interference.
With a 12-station tool magazine, equipped with a pair of cutting blades
(optional), automatic tool changing and self-cutting processing.
The high-speed motorized spindle imported from Italy can finish
machining at any angle within ±90°, with high working eciency.
Customizable 9-meter extended model.
