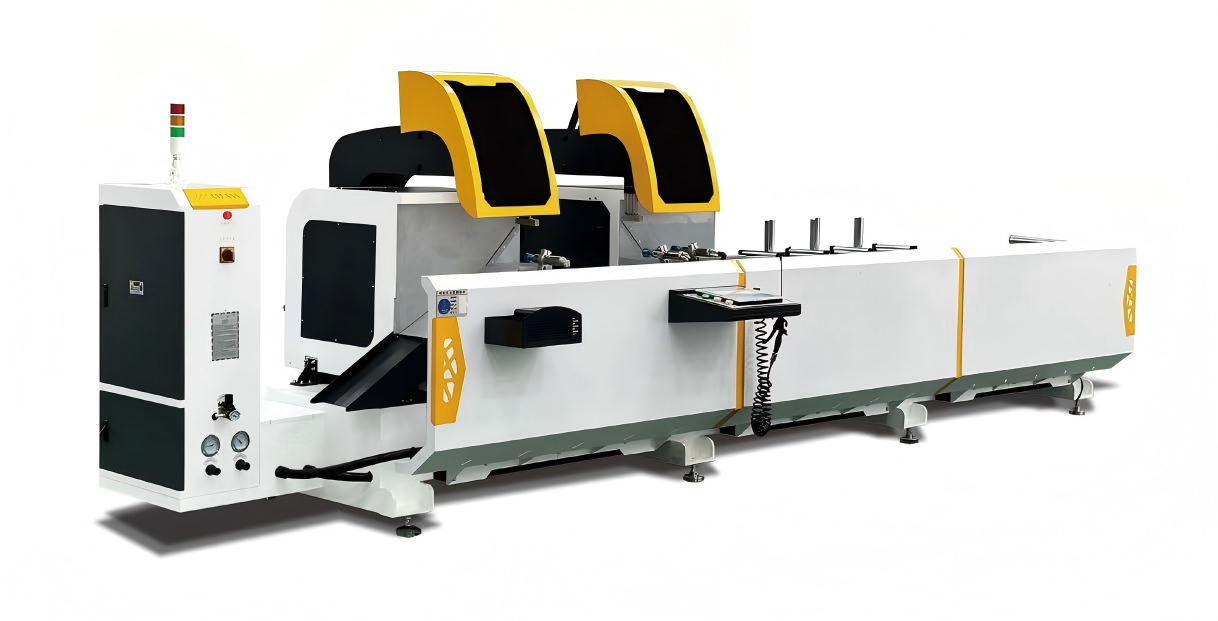

CNC Heavy-duty 45° Double-head Precision Cutting Saw
LJJZ2-CNC-550*4300
Input power supply: 380V/50Hz
Total power: 6.75 kW
Cutting motor power: 2 × 3.0 kW
Motor rotary speed: 3000 r/min
Servo motor: 0.75 kW
Working air pressure: 0.6–0.8 MPa
Air consumption: 20 L/min
Cutting length: 393–4300 mm
Cutting width: Max. 180 mm
Cutting height: Max. 145 mm
Sawing angle: 45°
Cutter feeding speed: Infinitely variable speed control, 0–3 m/min
Saw blade specification: ⌀550 × 4.4 × ⌀30, Z = 144 teeth
Overall dimensions: 5800 × 1800 × 1500 mm
Weight: Approx. 1950 kg
It is mainly used for cutting and blanking 45 angle of door and window
profiles in high-end systems.
The nose is xed at a 45° angle to ensure the stability of long-term use
accuracy.
The patented product and workbench have the function of lifting and
avoiding, ensuring the qualified rate of finished products.
Product Details
Related Cases
Related Post
Using numerical control technology, the automatic positioning cutting
and blanking of profiles with different specifications and sizes can be
completed.
Using diamond saw blade, the outer diameter can reach 550, the linear
speed is high and the machining accuracy is high.
High transmission precision, accurate positioning and stable operation.
High-precision spindle motor makes the saw blade rotate stably.
The gas-liquid damping cylinder realizes uniform feed speed regulation
and smooth movement.
Micro-spray cooling device is adopted.
When the machine tool works, the two saw heads can cut at the same
time or separately.
The saw blade is from back to front, so it is safer and more reliable to cut
profiles, and the cutting height and width are very large.
