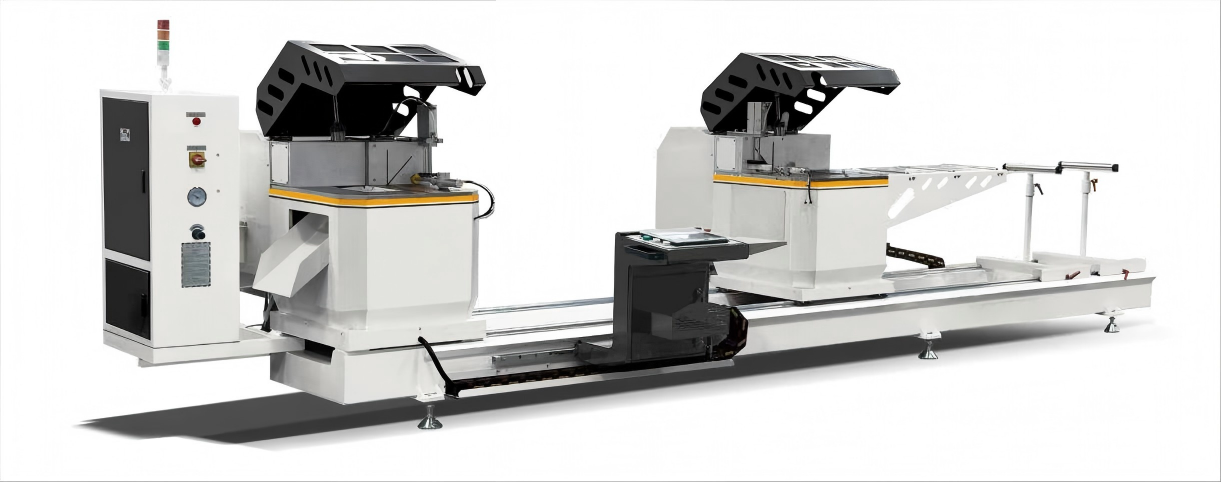

CNC Heavy-duty Double-head Precision Cutting Saw
SJTA-CNC-600*5000
Support Non-Standard Customization
■ Input power supply ：380V/50Hz
■ Cutting motor power ：2*4.0kW
■ Motor rotary speed ：2840r/min
■ Servo motor ：0.75kW
■ Working air pressure ：0.5~0.8MPa
■ Air consumption：45L/min
■ Cutting length：450~5000mm
■ Cutting width ：Max. 280mm
■ Cutting height ：Max. 120mm
■ Sawing angle ：90°、 45°
■ Cutter feeding speed ：0~3m/min
■ Return speed of saw blade ：2~3m/minSaw blade speciication ：Φ600*Φ38*4.4mm Z=144
■ Overall dimensions ：6260*1350*1380mm
■ Weight ：about 2000kg
Repetitive positioning accuracy：≤0.1mm
Cutting angle error：±3
Flatness of cutting profile：≤0.05mm
Roughness of cutting surface：Ra12.8μm
Suitable for cutting and blanking aluminum alloy curtain wall profiles, industrial aluminum profiles, door and window profiles, and also for cutting and blanking plastic profiles. Using numerical control technology, the automatic positioning cutting and blanking of profiles with different specifications and sizes can be completed.
Product Details
Related Cases
Related Post
■
Using cemented carbide saw blade, the outer diameter can reach
500mm-650mm, with high line speed and good cutting efect.
■
When the machine tool is working, the two saw heads can cut at the
same time or separately.
■
The saw head can swing at the required angles of 90。 and 45。 , so
it is more suitable for cutting large sections of industrial aluminum
proiles and aluminum curtain wall materials.
