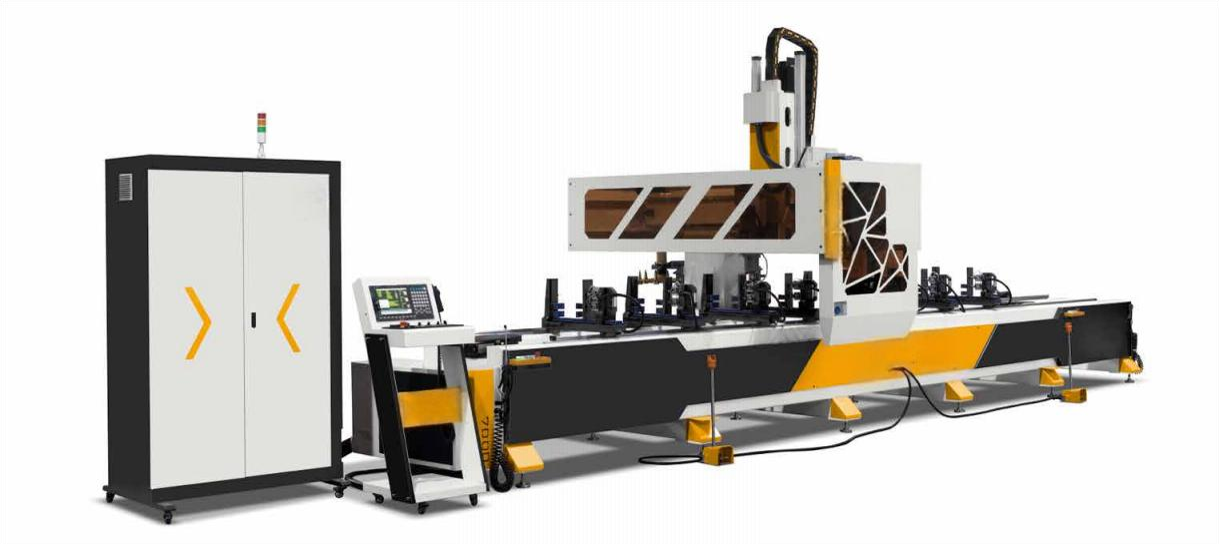

High-speed 4-axis CNC Processing Center
LGS-CNC-7000
Customizable processing range
X-axis stroke：7000~9000mm
Y-axis stroke：1300mm
Z-axis stroke：550mm
X-axis running speed：0~80m/min
Y-axis running speed：0~30m/min
Z-axis running speed：0~20m/min
Spindle speed：0~24000rpm
Spindle power：12kW
Spindle rotation range：-90° ~ 0° ~+90°
Tool magazine：12tool positions
Max. installation length ofcutter：165mm
Total power：23kW
Fixture station：8
Gas consumption：15L/min
Machining size range：650*250*7000mm (above)
435*250*7000mm (side)
Overall dimensions：11300*2350*2550mm
Weight：about5000kg
It is suitable for milling, cutting, rigid tapping and carving
of various holes and grooves of aluminum curtain walls
and industrial aluminum profiles, and cooperates with
three-dimensional programming software to perfectly
realize drilling, cutting and milling.
Adopt imported control system and servo motor, with
RTCP tool tip following function, and can process
multiple faces at one time.
Product Details
Related Cases
Related Post
High-quality grinding bal screw, linear guide grinding rack and high
speed bearing and other mechanisms to ensure that the equipment
has high machiningaccuracy.
The position of the ixture can be automatically positioned to avoid
the machining area. (optional)
Two tables can be used to process two or two profiles at the same
time, with interactivefeeding and non-interference.
With a 12-station tool magazine, equipped with a pair of cutting
blades (optional), automatictool changing and self-cutting processing.
The high-speed motorized spindle imported from Italy can finish
machining at any anglewithin ±90° ,with highworking eiciency.
Customizable 9-meter extended model
