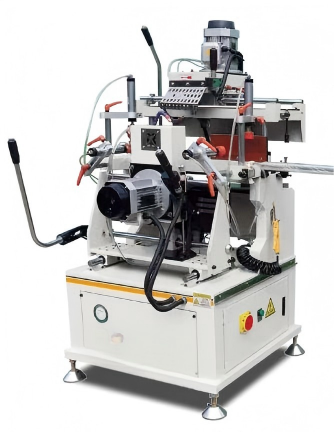

High-speed Double-shaft Copy-routing Drilling Machine
LXFG2-270*115
Power supply: 380V/50Hz
Motor power: 1.5 kW × 2
Working air pressure: 0.6–0.8 MPa
Air consumption: 2 L/min
Copy-routing range: 270 × 115 mm
Milling cutter diameter: ⌀5 – ⌀8 mm
Overall dimension: 880 × 1150 × 1580 mm
Weight: Approx. 350 kg
It is suitable for copying all kinds of holes, tenons
and grooves, running water troughs, etc. of
aluminum doors and windows.
Product Details
Related Cases
Related Post
Two mechanical copying modes, copying template
and auxiliary sizing, are adopted.
Two completely independent milling units realize
milling in two planes (horizontal and vertical).
One-time clamping, no need to turn over profiles,
and lock hole locking tongue can be completed at
one time.
Using imported milling cutter can improve
production eficiency and surface quality
