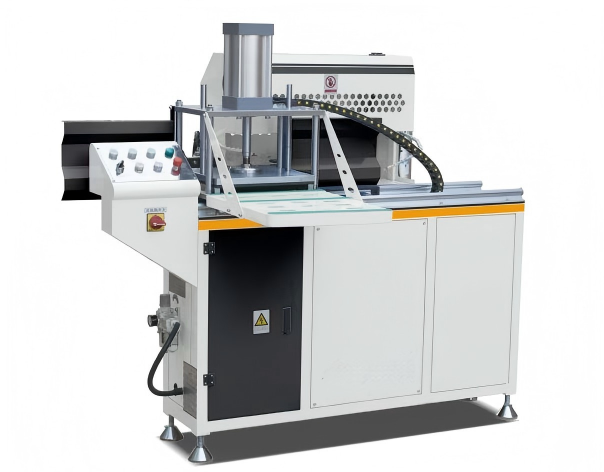

Medium-sized End-milling Machine for Aluminum Profile
LJDX-200C
Power supply: 380V/50Hz
Total motor power: 4.4 kW
Motor speed: 2800 r/min
Operating pressure: 0.6–0.8 MPa
Motor shaft diameter: ⌀32 mm
Milling cutter diameter: ⌀250 mm
Worktable feed stroke: 0–1360 mm
Open tenon: 40 mm
Worktable dimension: 330 × 320 mm
Motor adjustment stroke: 0–85 mm
Overall dimension: 2240 × 1020 × 1670 mm
Weight: Approx. 450 kg
It is suitable for milling the end face of aluminum profile, so as to meet
the matching between center stile and frame material. It can mill
multiple profiles at one time with high efficiency
Product Details
Related Cases
Related Post
Three-axis two motors can simultaneously carry 4- 6 cutters.
Cutting tools can be adjusted up and down and left and right to adapt
to machining with different shapes and sizes.
The cutting tool is adjustable, and it is unnecessary to customize the
cutting tool when processing different profiles, thus shortening the
production preparation, cycle and reducing the cost.
The motor phase sequence protector is installed in the circuit system,
which improves the safety of the system.
Gas-liquid damping device is adopted in the working progress system,
which is stable and reliable.
