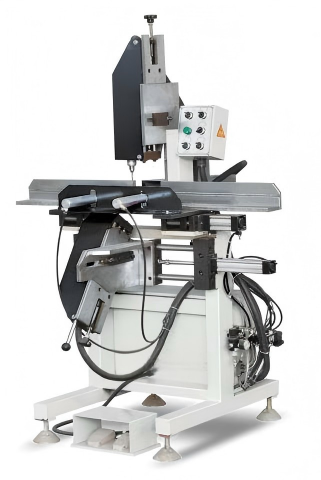

Water Slot Milling Machine for PVC Profile
LXCA-60
Power supply: 220V/50Hz
Input power: 1.14 kW
Cutter diameter: Φ4 – Φ5 mm
Slot depth: 30 mm
Slot width: 4–5 mm
Slot length: 0–100 mm
Overall dimension: 950 × 1000 × 1800 mm
Weight: Approx. 300 kg
Product Details
Related Cases
Related Post
Used for processing various types of drainage
grooves and air pressure balance grooves of PVC
the Profile.
Automatic tool changing for the under – machine
head, with a clamping system that automatically completes the
processing of profiles on both ends of the tank.
Independent milling feeding system, no need of
special maintenance, and easy operation.
Convenient adjustment of tool position, which is suitable
for different profiles.
Water slot milling length adjustable within 100mm,
wide adaptability.
