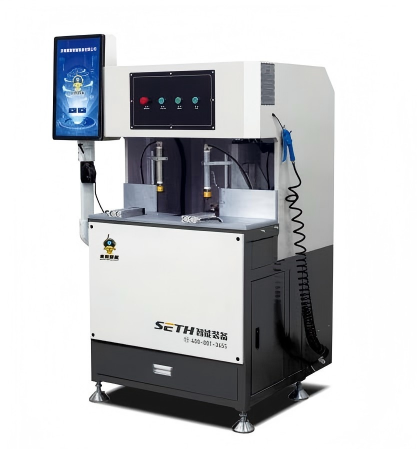

CNC Drilling and Milling Machine for Process Holes
LXCGY-CNC-120
Power supply: 380V/50Hz
Total motor power: 3.4 kW
Milling cutter speed: 18000 r/min
Operating pressure: 0.5–0.7 MPa
Width of machined profile: 120 mm
Height of machined profile: 190 mm
X/Y/Z axis stroke: 260 mm / 200 mm / 120 mm
Overall dimension: 870 × 900 × 1600 mm
Weight: Approx. 345 kg
It is suitable for flexible machining such as pin
holes, glue injection holes, (and other subsequent
adding functions) of aluminum door and window
frames, fans and tappets. Instead of punching
machine, 45° openings and sharp corners are
adopted to avoid the sharp corners of profiles, so
as to protect them and avoid scratches.
Product Details
Related Cases
Related Post
The effiective processing width is 120mm and the
height is 200 mm.
Input method supports Chinese input (Pinyin/
Chinese character library), which is concise and
intuitive.
