CNC Four-head Corner Combining Machine
LM4S-100*2500*3500
Input power supply: 380V/50Hz
Total power: 7.5 kW
Rated pressure: 15 MPa
Working air pressure: 0.5–0.8 MPa
Air consumption: 60 L/min
Profile width: 93 mm
Max. frame dimension: 2500 × 3500 mm
Min. frame dimension: 480 × 480 mm
Overall dimensions: 4700 × 2200 × 3000 mm
Weight: Approx. 2500 kg
It is suitable for the efficient assembly of aluminum doors and windows,
controlled by numerical control system, and can complete the corner
code stamping connection of four corners at one time.
Through the torque monitoring function of the servo system, the
automatic pre-tightening of the four corners is realized, and the angle
setting accuracy is ensured.
The control system is seamlessly connected with the servo system,
which greatly improves the control accuracy.
Product Details
Related Cases
Related Post

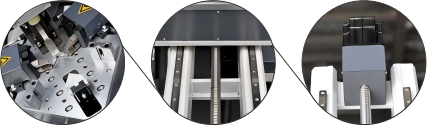

The pressing device automatically moves back and forth, which is
convenient to operate and the window size can be automatically
adjusted.
The frame is made of Angang steel, welded professionally, and
subjected to aging treatment.
Adopt high-quality numerical control system, giving consideration to
both speed and accuracy.
The angle cutter is easy to adjust front, back, left and right to meet the
needs of different profiles.
One-time framing can control the joint and flatness between profiles,
so that the framing quality is predictable.
