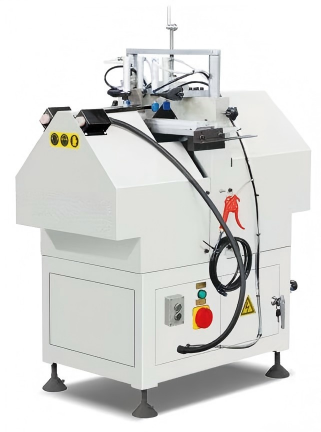

Glazing Bead Saw for PVC Profile
SJBW-1800
Power supply: 380V/50Hz
Input power: 2.2 kW
Motor rotary speed: 2800 r/min
Cutting width: 100 mm
Cutting height: 33 mm
Cutting length: 320–1800 mm
Overall dimension: 1350 × 600 × 1350 mm
Weight: Approx. 250 kg
Product Details
Related Cases
Related Post
Used for 45° cutting of glass bead and milling of
pressing angle.
Can cut two battens at the same time with high
efficiency.
Adjustable batten backing plates are provided,
which do not need to be replaced when replacing
profiles, thus avoiding reinvestment and reducing the
production preparation period of doors and windows.
The adjustable positioning plate is provided with
an in-plane fine adjustment device, so that the
inner vertical angle after the layering is assembled
is in close fit.
