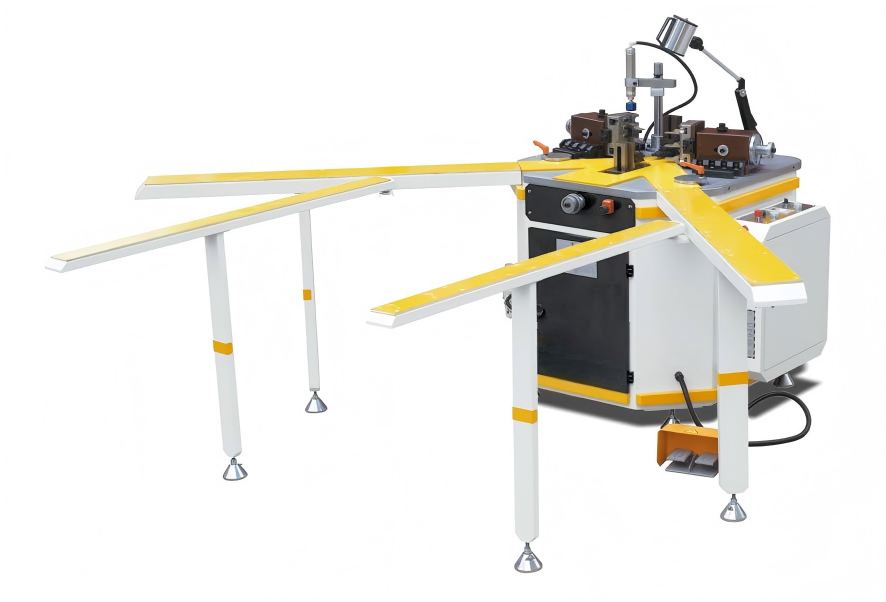

Heavy-duty Single-head Corner Combining Machine for System Doors and Windows
SH-CNS-160S
Power supply: 380V/50Hz
Total motor power: 3.0 kW
Rated pressure: 20 MPa
Operating pressure: 0.6–0.8 MPa
Air consumption: 5 L/min
Front positioning stroke: 170 mm
Backward cutter stroke: 120 mm
Adjustment range of front positioning: 140 mm
Adjustment range of angle cutter: 160 mm
Height of machined profile: 160 mm
Fuel tank capacity: 40 L
Oil pump size: 10 inch
Overall dimension: 870 × 1200 × 1100 mm
Weight: Approx. 700 kg
It is suitable for corner-code punching and riveting connection of aluminum door and window curtain wall.
■ This machine is the latest R&D and design model of our company, which is the first in the industry, with stable performance, high precision and high e佧ciency.
Product Details
Related Cases
Related Post
The machine is controlled by program, hydraulic system provides angular power, and has high punching and riveting force, fast speed and stable operation.
■ The angle setting knife has a wide adjustment range up and down, is easy to adjust, and adapts to the angle setting of higher and thicker proiles.
■ The front positioning adopts lifting type, which is convenient for taking and placing materials.
■ Double-point knife and step knife can be conigured to make the angle strength higher.
