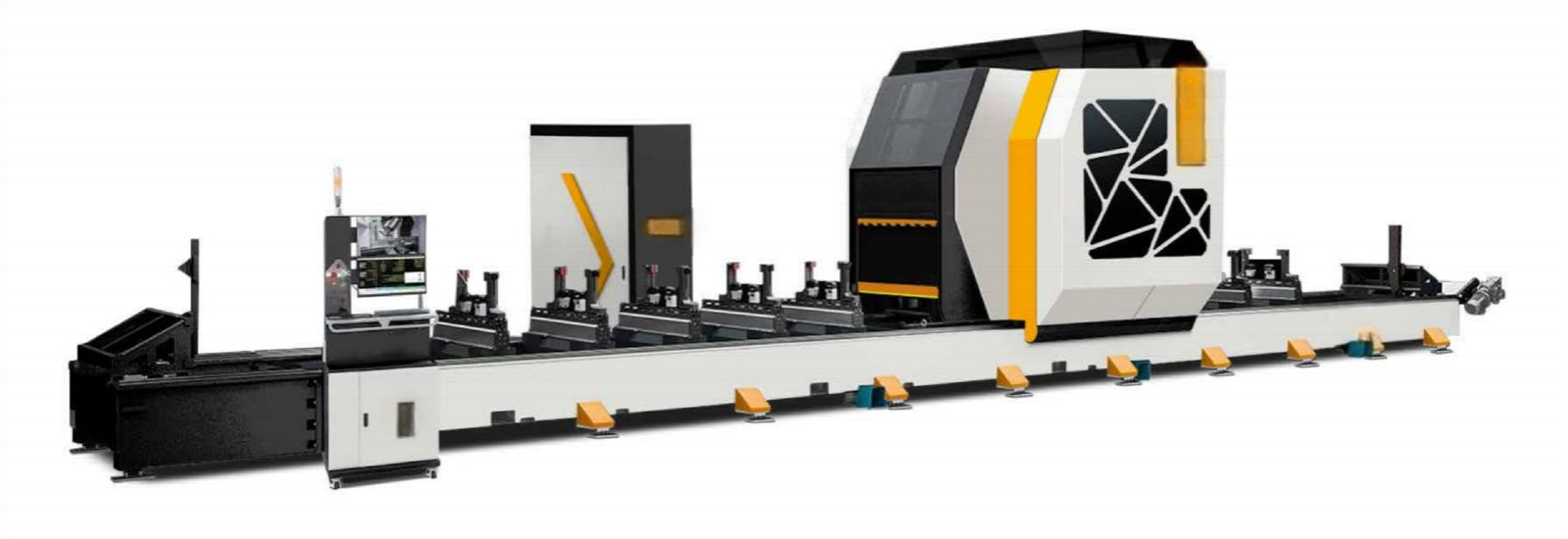

High-speed 5-axis CNC Processing Centerx`

MF-CNC-5D-7000 Support Non-Standard Customization X-axis stroke：7000~10500~15500mm ■ Y-axis stroke：630mm 3-axis, 510mm4-axis ■ Z-axis stroke：590mm ■ A-axis stroke：± 120° ■ C-axis stroke：± 220° ■ X-axis running speed：0~80m/min ■ Y-axis running speed：0~35m/min ■ Z-axis running speed：0~25m/min ■ Spindle speed：16000rpm ■ Taper ofspindle hole：HSK-F63 ■ Spindle power：15kW ■ Tool magazine form：Umbrella form ■ Tool magazine capacity：Mobile 12 stations+ixed 1 station (saw blade) ■ Cooling system：Atomized cooling ■ Lubrication system：Automatic lubrication ■ Fixture station：8 ■ Gas consumption：15L/min ■ Overall dimensions：11300*2950*3500mm ■ Weight：about 7000kg X-axispositioningaccuracy 0.03mm Y/Z-axispositioningaccuracy 0.02mm Repetitivepositioningaccuracy 0.02mm
The 5-axis NC machining center wi h movable gan ry adopts a 5-axis linkage control system, an has he function of RTCP tool tip following. I can process mul iple complex surfaces a one t me, and can m l , dri , thread and cut large-size alum num, PVC, genera ig t alloy and s eel bars or workpieces.
Request a Quote
Get Datasheet

■The moving part of the machine consists of a moving door, and the

moving gantry is equipped with a heavy motorized device with a

high-precision rack.

■High-power electric spindle (15kW) with HSK-63F tool joint can also

perform heavy machining, and good results can be obtained in terms

ofspeed and accuracy.

■The mobile gantry contains a 12-bit tool library system, and 500 mm

tools are stored separately in a specialtool library.

■The machine tool is equipped with dual-station mode, which can

minimizethe downtime ofthe machinetool. Because inthis mode,the

workpiece can be replaced (loaded/unloaded) within a complicated

processing time. It is also possible to process diferent workpieces in

two processing areas.

■Equipped with gantry shell, it can not only protect operators, but also

reduce environmental noise.
